Rolling Towers
SAFETY INCLUDED
Layher sets standards. All rolling towers and assembly scaffolding conform to DIN EN 1004. Inspections by independent institutions such as TÜV and the professional trade associations with the GS symbol are a guarantee of this.
FOR THE HIGHEST PERFORMANCE AT GREATER HEIGHTS YOU NEED GOOD STABILITY.
MORE SAFETY ON CONSTRUCTION
To comply with European safety laws and requirements, the Layher product portfolio includes Safety Structure P2. Safety Structure P2 provides collective protection.
If you already possess a Layher Rolling Tower, then you can convert this into the P2 variant easily.
SAFETY STRUCTURE P2
The simple assembly principle
All-round side protection already present when the top platforms are accessed.
More stability in the tower thanks to additional bracing.
Platforms spaced 2 m apart
Maximum safety during assembly , during ascent and descent and during work.
Easy passing of rolling tower parts or working materials from level to level.
The innovative Uni assembly hook
Assembly is considerably facilitated, and fast and trouble-free assembly and dismantling are assured.
- Solo Tower
- Zifa P2
- Uni Light P2
- Uni Standard P2
- Uni Wide P2
- Uni Compact P2
- Uni Comfort
- Staro Rolling Tower
- Aluminum Bridging Beam 600

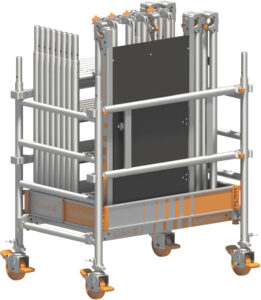

SoloTower – For Fast, Simple and Safe Single-Person Assembly
The SoloTower from Layher is a small rolling tower that can be assembled quickly, safely and easily by a single person, up to a working height of 6.15 metres.
- Working height: 6.15 m
- Area of work platform: 0.75 x 1.13 m
- Permissible live load: 2 kN/m² (scaffolding group 3)
- Economical, efficient and ergonomical logistics for storage and transport and at the site, due to compact dimensions of all components.
- More safety when moving to the next platform up, due to double guardrail preassembled using the 3-T method.
- Safer assembly and dismantling by only one person, due to passing of the compact components from level to level using the SoloTower assembly hook.
- Tool-free, quick and easy assembly due to the proven Layher connection technology of snap-on claw.
- End and side toe boards made of aluminum and preassembled to create a folding toe board ensure rapid fitting to the platform.
- Design to European standard DIN EN 1004 for mobile work platforms, for maximum quality and safety.

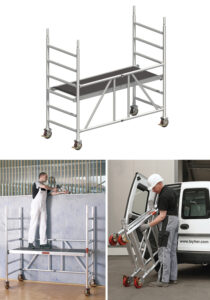

Zifa P2 The Ready-to-use Tower for Work at Low Heights
Folded together flat for storage and transport – unfold it, insert the deck. That’s all.
- The basic unit will fit through standard room doors when assembled and fully loaded.
- Aluminum basic tower for alternating-sequence push-fit assembly; aluminum guardrails and diagonal braces snap in easily.
- Work decks with aluminum frame and plywood insert (BFU 100), also as an access deck for risk-free internal access.
- Strong and permanently fitted castors ensure excellent stability.
- Working height: 7.76 m
- Area of working platform: 0.75 x 1.80 m.
- Permissible live load: 2 kN/m² (scaffolding group 3).
Uni Light P2 – The Practical Rolling Tower when Working in Restricted Spaces
The UniLight Tower P2 is a compact and lightweight rolling tower for safe and convenient work wherever you used to need a ladder – the generous 1.3 m² platform area permits unimpeded movement and provides space for tools and material.
- Its low weight and convenient dimensionsmake it very easy to transport, even in a van.
- Aluminum ladder frames for push-fit assembly; aluminum guardrails and diagonal braces snap in easily.
- Work decks with aluminum frame and plywood insert (BFU 100) as an access deck for risk-free internal access; statutory rest platform already integrated.
- Strong castors (permanently fitted) ensure outstanding stability.
- Rigid steel mobile beam to widen the base; with spigots for optional mounting of ladder frames when working on ceilings or walls.
- Working height: 9.26 m
- Area of working platform: 0.75 x 1.80m.

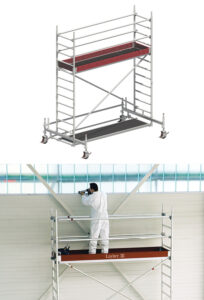

Uni Standard P2 – The Most Versatile Rolling Tower for Very High-level Work
The Uni Standard P2 – for work on walls and ceilings, on machinery, in technical facilities, factories and warehouses, indoors and outdoors.
- Aluminum ladder frames for push-fit assembly; aluminum guardrails and diagonal braces snap in easily.
- Work decks with aluminum frame and plywood insert (BFU 100), -also as an access deck for risk-free internal access; statutory rest platforms already integrated.
- Sturdy castors with concentric load transmission after locking for outstanding stability, and steel spindles for levelling.
- Widening of base: rigid or telescopic mobile steel beam , with spigots for optional mounting of ladder frames for work on ceilings and walls; alternatively with tower supports.
- For even more safety and even more convenient access, suspended ladders with wide steps.
- Working height 13.38 m
- Area of working platform: 0.75 x 2.85 m.
- Permissible live load: 2 kN/m² (scaffolding group 3).

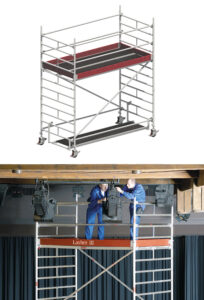

Uni Wide P2 – The Universal Tower for Very High-level Work with Double-width Work Deck
The Uni Wide P2 universal tower with double-width work deck provides a convenient platform when working at height.
- Ideal for working with bulky materials while assuring the necessary freedom of movement.
- Aluminum ladder frames (1.5 m wide) for push-fit assembly; aluminum guardrailsand diagonal braces snap in easily.
- Work decks with aluminum frame and plywood insert (BFU 100) as an access deck for risk-free internal access; statutory rest platforms already integrated.
- Sturdy castors with concentric load transmission after locking for outstanding stability, and steel spindles for levelling.
- Widening of base: with steel mobile beam, telescope option for work on ceilings or walls, only needed at working heights of 8.6 m and above; alternatively with tower supports.
- For even more safety and even more convenient access, suspended ladders with wide steps.
- Working height 13.38 m
- Area of working platform: 1.50 x 2.85 m.
- Permissible live load: 2 kN/m² (scaffolding group 3).

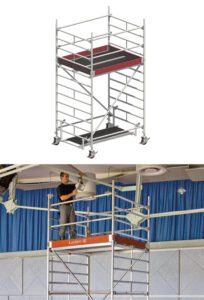

Uni Compact P2 As a Compact Universal Tower with Double-width Work Deck
The universal Uni Compact P2 tower with double-width work deck yet with compact basic dimensions – offers ample room for working at heights, even with materials, while still leaving plenty of freedom of movement.
- Aluminum ladder frames (1.5 m wide) for push-fit assembly; aluminum guardrailsand diagonal braces snap in easily.
- Work decks with aluminum frame and plywood insert (BFU 100) as an access deck for risk-free internal access; statutory rest platforms already integrated.
- Sturdy castors with concentric load transmission after locking for outstanding stability, and steel spindles for levelling.
- Widening of base: with steel mobile beam, telescope option for work on ceilings or walls, only needed at working heights of 8.38 m and above.
- Working height 10.38 m
- Area of working platform: 1.5 x 1.8 m.
- Permissible live load: 2 kN/m² (scaffolding group 3).

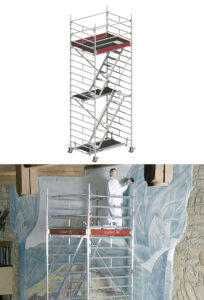

Uni Comfort – The Universal Tower with Convenient Stairway Access
The compact Uni Comfort tower is ideally suited for assembly and maintenance work etc.
- The convenient stairway access with full-length handrail facilitates frequent ascents and descents, permits very high-level work and leaves the hands free to carry tools and material.
- Aluminum ladder frames (1.5 m wide) for push-fit assembly; aluminum guardrails and diagonal braces snap in easily.
- Work decks with aluminum frame and plywood insert (BFU 100) as an access deck with full-length opening for convenient internal access.
- Sturdy castors with concentric load transmission after locking for outstanding stability, and steel spindles for levelling.
- Outriggers for base widening can be attached without using tools. If these are fitted with castors, the tower can be moved safely without being dismantled.
- Working height 14.2 m
- Area of working platform: 1.50 x 1.80 m.
- Permissible live load: 2 kN/m² (scaffolding group 3).

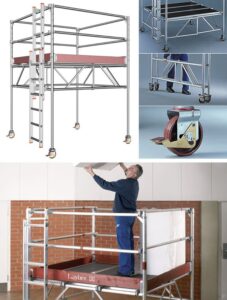

Staro Rolling Tower – The Ready-to-use Tower for Freedom of Movement and a Large Working Area
The Staro rolling tower is the “ready-to-use” tower with a large work deck. It is indispensable for fast work on large ceiling surfaces or for assembling components or for installation work underneath the ceiling. The large work surface offers ample freedom of movement and space for storing tools and materials ready to hand.
- Aluminum basic tower; aluminum guardrails and intermediate guardrails snap in easily.
- Work decks with aluminum frame and plywood insert (BFU 100).
- Sturdy castors (dia. 150 mm) with concentric load transmission after locking for outstanding stability. Leg tube (1.95 m long) with holes 11 cm apart for height adjustment.
- Working height 3.90 m
- Area of working platform: 1.95 x 1.95 m.
- Permissible live load: 1.5 kN/m² (scaffolding group 2).

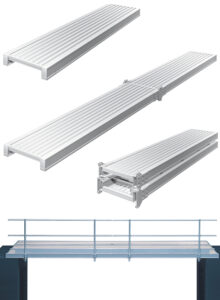

Aluminum Bridging Beam 600 – The Work Deck for lengths up to 10 M
The Aluminum Bridging Beam 600 is a time-saving and practical component. Because it is manufactured from lightweight aluminum sections, it is both light and strong. Depending on the application, it is also possible to attach a three-piece side protection to the Aluminum Bridging Beam.
- Conforms to DIN EN 12811-1.
- Permissible load class 2 (1.5 kN/m² up to 10 m length)
- Permissible load class 3 (2 kN/m² up to 7.1 m length)
